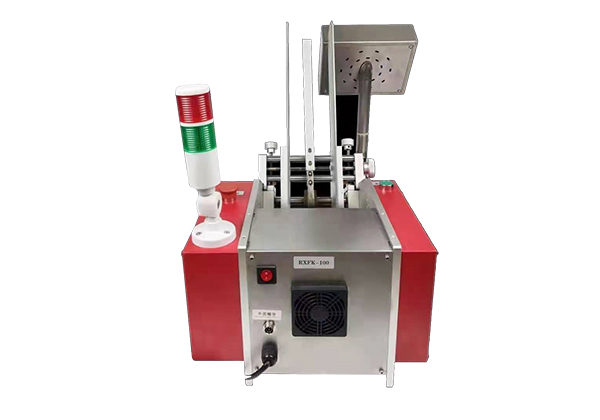

    RXFK-100 Model

    RXFK-100 Model
    • 質量穩定:實行全過程質量監控,細致入微,各方面檢測!
    • 價格合理:內部成本控制,減少了開支,讓利于客戶!
    • 交貨快捷:生產流水線,充足的備貨,縮短了交貨期!
    • 銷售:0577-58189636

    詳情介紹

    適用范圍

    本產品將整疊片狀產品如: 明信片、賀卡、掛牌、包裝袋、未成形紙盒、標簽、信封、紅包等;

    折疊狀產品如: 說明書、宣傳海報及各種不同尺寸的折疊狀產品;

    本狀產品如: 說明書、卡片書、筆記本、動漫小書、雜志及各種不同尺寸的本狀產品,自動分開,成單個傳送到輸送帶上。它既能夠單獨作分卡計數使用,亦可以輕松地整合到相關聯的設備中作自動分卡、配合各種自動包裝線使用,例如: 枕式包裝機、立式包裝機、自動輸送機、自動收縮包裝機、裝箱機等。


    主要性能及特點

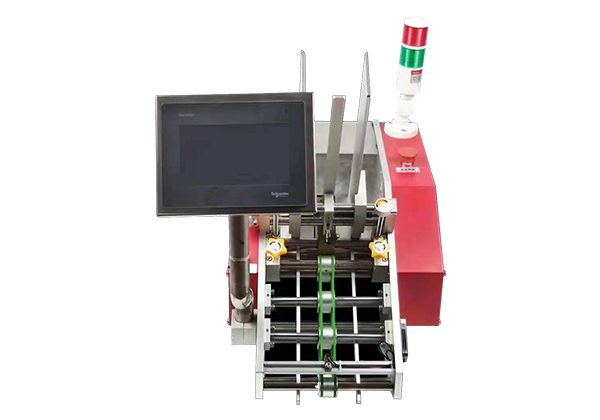

    伺服電機驅動系統,PLC控制器以及觸控界面,操作簡單易用。各種設置、操作均可在觸摸屏上輕松完成,同時具有存儲功能,設置好相關數據開機自動操作。

    伺服電機Zui高速度可達到50米/分鐘。

    自動發卡機對接全自動包裝機,根據不同的包裝數量快速自動發卡。

    漏卡、無卡自動報警功能,可選擇發單張、多張及連續發卡功能。

    采用光電控制,開啟總電源開關后,光電感應,自動發卡。

    與自動化包裝設備的匹配,真正實現一體化自動包裝。

    系統本身帶有多項功能設定,包括預發卡長度、每次設定發卡數量、重卡無卡片時有自動停機報警等功能,實時在線控制。


    性能技術參數

    發卡速度500張/每分鐘(與卡片尺寸有關)
    發卡厚度0.1mm-3mm
    發卡尺寸

    發卡長度:45-150mm 發卡寬度:32-100mm

    動力控制系統伺服電機驅動PLC控制
    電源及功率220V/450W

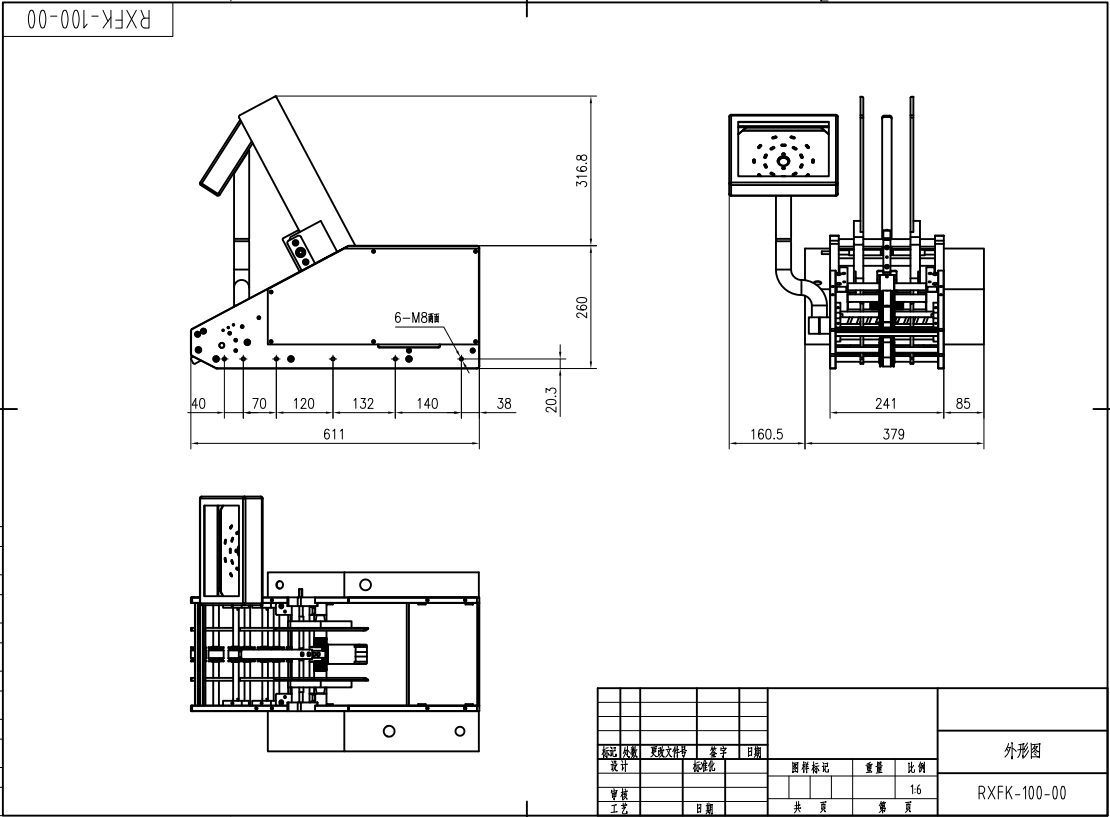

    外形尺寸約(長)630*(寬)430*(高)600mm
    機器重量約25公斤





    Scope Of Application


    This product will be stacked in sheets such as:Postcards, greeting cards, tags, packaging bags,unformedcartons,labels, envelopes, red envelopes, etc;

    Folded products such as:Instructions, posters and various sizes of folding products;

    This product is as follows:Manual, card book,notebook,comic book, magazine and various sizes of thisproduct, automatically separated into a sincle transmissionTo the conveyor belt.It can not only be usedfor sub card counting alone, but also can be easilyintegrated into the associated equipment for automaticcard distributionPackaqing line use, such as: pillow packaging machine, vertical packaging machine,

    automatic conveyor, automatic shrink packaaina machine,packing machine, etc.


    Main performance and characteristics

    Servo motor drive system.PLC controller and touch interface.easy to operate.All kindsof settings and operations can be easily completed on the touch screen.At the same time,

    it has the storage function, and the relevantch 50 ml min. The maximum speed of servo motor can reach 50 m / min.

    The automatic card issuing machine is connected with the automatic packaging machine,and the card can be issued automatically according to the different packaging quantity.

    Automatic alarm function of missing card and no card.Single card, multiple card andcontinuous card issuing function can be selected.

    Photoelectric control is adopted.After the main power switch is turned on, photoelectricinduction and automatic card issuing are realized.

    Real integration of packaging and automation.

    The system itself has a number of functions, including pre card length, number of cards pertime, automatic stop alarm when there is no card for heavy card, and real-time online control.


    Performance technical parameters

    Card issuing speed500cards / min (related to card size)
    Hairpin thinkness0.1mm-3mm
    Card size

    Card length:45-150mm

    Card issuing width:32-100mm

    Power control systeServo motor driven PLC control
    Power supply and powe220V/450W
    DimensionsAbout(length)630*(width)430*(height)600mm
    Machine weighAbout 25 kg
